#350 Using API Catalog for harvesting Service Bus APIs

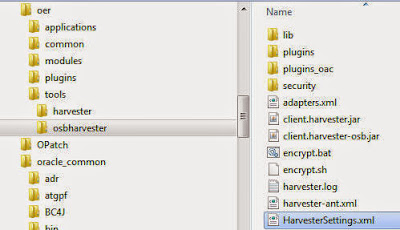

Same modus operandi as in the previous post - except we now us the osbharvester directory.

I had to make some changes to the following files - setenv.bat and HarvesterSettings.xml

BTW. my SB install is part of the JDEV SOA Quickstart environment.

JDEV Quickstart is installed at D:\Work\envs\FMW12c\SOA\jdev

setenv.bat

@echo off

@rem    Common Environment, including JAVA, ANT etc...

set MW_HOME=..\..\..\

call %MW_HOME%\oracle_common\common\bin\commEnv.cmd

echo %MW_HOME%

@rem    OSB / ConfigJar Tool Home directories

@rem NiallC changed the following 3 entries

set OSB_HOME=D:\Work\envs\FMW12c\SOA\jdev\osb

set OER_HOME=%MW_HOME%oer

set HARVESTER_HOME=%OER_HOME%\tools\osbharvester

@rem end of NiallC changes

@rem    System properties required by OSB

set OSB_OPTS=

set OSB_OPTS= %OSB_OPTS% -Dweblogic.home="%WL_HOME%/server"

set OSB_OPTS= %OSB_OPTS% -Dosb.home="%OSB_HOME%"

set OSB_OPTS= %OSB_OPTS% -Djava.util.logging.config.class=oracle.core.ojdl.logging.LoggingConfiguration

set OSB_OPTS= %OSB_OPTS% -Doracle.core.ojdl.logging.config.file="%HARVESTER_HOME%/logging.xml"

set JAVA_OPTS=%JAVA_OPTS% %OSB_OPTS%

set ANT_OPTS=%ANT_OPTS% %OSB_OPTS%

@rem  classpath representing OSB

set CLASSPATH=%CLASSPATH%;%JAVA_HOME%\lib\tools.jar

set CLASSPATH=%CLASSPATH%;%MW_HOME%\wlserver\server\lib\weblogic.jar

set CLASSPATH=%CLASSPATH%;%MW_HOME%\oracle_common\modules\internal\features\jrf_wlsFmw_oracle.jrf.wls.classpath_12.1.3.jar

@rem NiallC reset the next line

@rem set CLASSPATH=%CLASSPATH%;%MW_HOME%\soa\soa\modules\oracle.soa.common.adapters_11.1.1\oracle.soa.common.adapters.jar

set CLASSPATH=%CLASSPATH%;D:\Work\envs\FMW12c\SOA\jdev\soa\soa\modules\oracle.soa.common.adapters_11.1.1\oracle.soa.common.adapters.jar

set CLASSPATH=%CLASSPATH%;%OSB_HOME%\lib\servicebus.jar

@rem  classpath for OER Harvester

set CLASSPATH=%CLASSPATH%;%HARVESTER_HOME%\client.harvester.jar

set CLASSPATH=%CLASSPATH%;%HARVESTER_HOME%\client.harvester-osb.jar

@rem  ANT classpath

set LOCALCLASSPATH=%CLASSPATH%

Now, I probably could have done the above more elegantly, but it's late...

HarvesterSettings.xml



I run the cmd as follows -

D:\Work\envs\APICatalog\WLS\oer\tools\osbharvester>

osb-harvest -remote_url http://ncommisk-de.de.oracle.com:7101 -remote_username weblogic -remote_server_type OSB

I then check the result in OAC - here is my SB (REST) API

Here is the definition in em -

I now harvest another SB project -

Here are the APIS in OAC -

Here are the details of one of the services -
