This is my second post on integrating with Oracle Hospitality Cloud using OIC. The introductory post is here. So let's continue our journey...
I preface this post with the usual caveat - I am not an expert on Oracle Hospitality, however, I have been playing around with the apis provided by OHIP.
So here is the basic scenario - I want to implement the following basic use cases -
1. room reservation
The introductory post covered room reservation, but here is a recap.
Think of OHIP (Oracle Hospitality Integration Platform) as THE catalog of APIs for Opera integration and THE Gateway for processing API requests.
Starting point is getting the required OAuth Token -
Now I can work with the apis - next step check for Room Availability, then create the Reservation -
I can then use the Reservation Id to complete the Check In process -
Check in has 2 steps -
1. Room Assignment
There is a partner program run by the OHIP folks which gives one access to the Oracle Hospitality Integration Platform. Their collateral also includes a postman collection that one can use to test the apis.

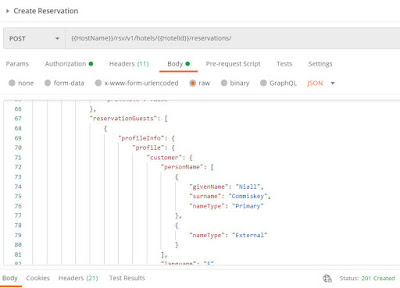

So let's start off with looking for room availability and then reserving a room -
Reservation Id is in the Response header - Location -
In my case, 18175.
I can use this to retrieve, update, cancel the reservation -
Note the profile id - CRM part of Opera Cloud
Ok, so now we have reserved the room and today's the day - time to check in.
Another useful api in this respect is the following -
Checkin is only valid on the date of arrival.
I already mentioned room assignment, so this is where I go back to my pre-covid experience of checking into hotels. Front office staff look for available rooms -
looks like room 101 is good - I try to assign this -

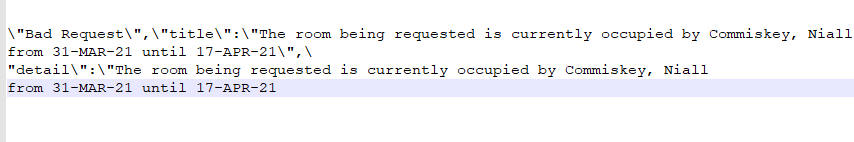

Looks like Fergus has beat me to it!
I try again with room 102 -
I check the available rooms and find -
Granted, it is a Superior room, but I deserve the upgrade.
Room 308 it is then!
Finally, the Check In api call -
Naturally, I have a Postman environment that is used by all of the calls -
Now to getting all of this running in OIC, with a Visual Builder front end.
The Postman collection is of great help here - providing me with the apis I need to call and sample request and response payloads.

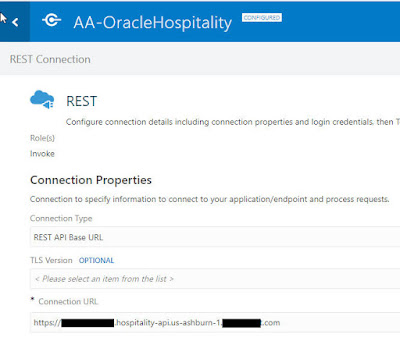

OHIP Connectivity in OIC
Note: I am using the OIC REST adapter.
I leverage an OIC Lookup for some of the required values, stored in the Postman environment file.
I will detail how to "migrate" some of these to the Connection definition in my next post.
First Integration is Check for Room Availability -
The REST Trigger - GetRooms - is configured as follows -
Now to GetAvailability, which invokes the OHIP api.
Note the Standard and Custom HTTP Headers above.
Mapping is simple - some leveraging the builtin OIC lookup function -
Now to a Test -
€300 - what a bargain - must be an April Fool!
Now to the Create Reservation Integration -
Same process here -
The Location Header will contain the Reservation Id.
I then use the substring function to extract the aforementioned.
Let's test this in OIC -

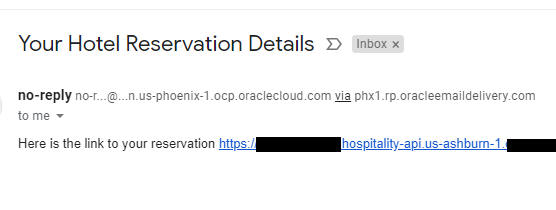

I check my email for the confirmation - remember the Notification action (NotifyGuest) in the integration?
Now to checkin step 1 - Assigning a room -
Just think of the receptionist looking for free rooms -
So plenty of room at the inn. This integration takes the reservationId and a frontOfficeStatus as parameters. The value of the latter is set to "Vacant".
GetVacantRooms4Checkin configured as follows -

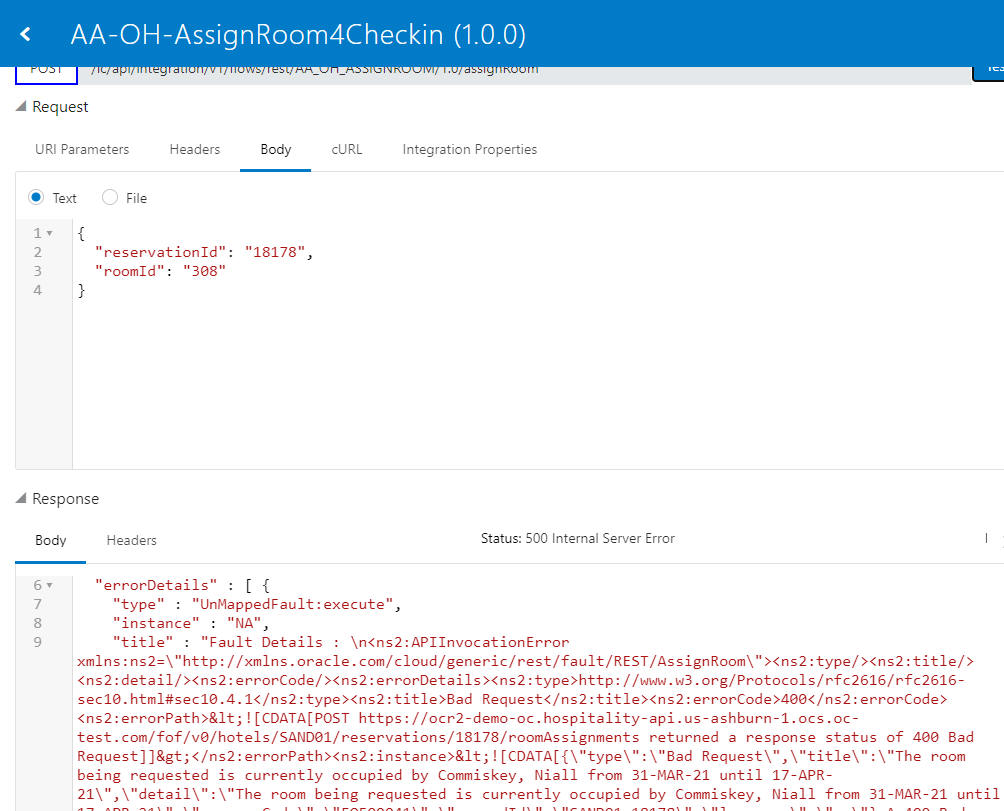

The next step is Assign the Room -
