#901- OIC & Simphony - Ordering the Pizza

The previous post ended with us displaying the menu to the user. Now for the next step - placing the order with Simphony.














Starting point is the Simphony Postman collection -














Let's check out the request payload -

Most of the fields are self-explanatory -

We have the usual Simphony hierarchy then the orderTypeRef - this can be set to one of the following -












then we have the checkEmployeeRef - just think of a server taking orders on their hand held devices in a restaurant. Each order will be associated with that server.

I assume we will use a generic "employee" for this use case.

Next the menu items section where we can specify our pizza.


note the extensions options - printInKitchen etc. - so our pizza baker, Jimmy, gets the order.





Now to OIC -

Creating the PlaceOrder Integration

Here is is -

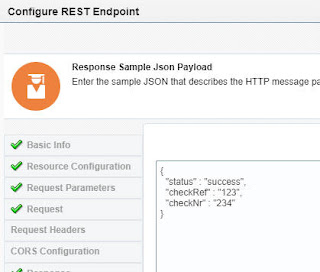

The Rest Trigger is configured as follows -












PlaceOrder (the Simphony Invoke) is configured as follows -






















Mapping leverages an OIC Lookup for many field values -


Here is the Lookup -


I also have a Notification Action to email the customer, once the order has been placed.

Now to testing -














I check my email -








Now to invoking this integration from Visual Builder -

Visual Builder - App Configuration

Step 1 is to import the integration definition -



























I've added a couple of fields and the Place Order button to the VB page -

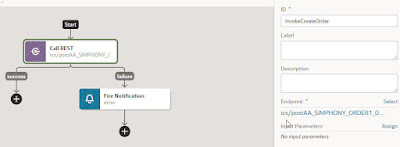

I create the button event and configure as follows -


do the mapping -




































Order Completes -


Final step is to return the check number from the Simphony response -



I order another pizza - who's going to eat all of these?

and the checkNr/orderNr is surfaced.
