EMAIL notifications with Oracle SOA Suite 11g

In this example we will use Apache JAMES as our email server and MS Outlook as email client.

We will configure SOA Suite to use James and then we shall create a simple BPEL process to send an email.

· Download from http://james.apache.org/
· Unzip to a directory of your choice

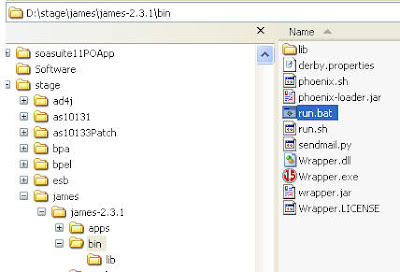

· Start James



telnet into James and create a couple of users

o telnet localhost 4555
o root/root
o adduser bpelsender welcome1
o adduser bpelreceiver welcome1
o adduser jcooper welcome1



Configure Email client for jcooper, bpelsender etc.
· Configure your email client e.g. MS Outlook
o Tools --> Accounts




Configure SOA Suite 11g EMAIL




Set the following Email Driver Properties -

Sender Addresses = bpelsender@localhost
Default Sender Address = bpelsender@localhost
Outgoing Mail Server = localhost
Outgoing Mail Server Port = 25
Outgoing Mail Server Security = none
Outgoing Default From Addr = bpelsender@localhost


Set the following Workflow Notification Properties -

right mouse click soa-infra --> SOA Administration --> Workflow Notification Properties

Notification Mode = Email




Restart soa_server1


Create a simple BPEL composite that sends an email

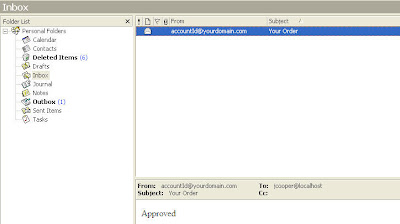

Test
