#597 Quick look at the ICS JDE adapter

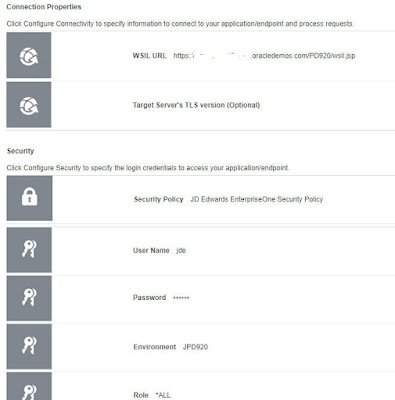

Here is the adapter configuration -

Here is it in use as an INVOKE -

#596 ICS Fusion ERP adapter in action

File-based Data Import (FBDI): Import Journal Entries into Oracle Financials with ICS,
incl. processing the Callback.

In this simple example we will do the following -

1. pick up a zipped file from an ftp server
2. unzip the file. It will contain many files
3. For each file -
3.1. Read the records in the file
3.1.1. For each record -
3.1.1.1. Transform and write to the output file
3.2. Upload the file to Fusion ERP - invoke the ERP Import Service.

Create the connections in ICS

Create the Fusion ERP Connection

Create and test the FTP connection

Create the ICS Orchestration

Drop in the ftp adapter -

I can delete the Map to DownloadZipfile

I now need to unzip the file -

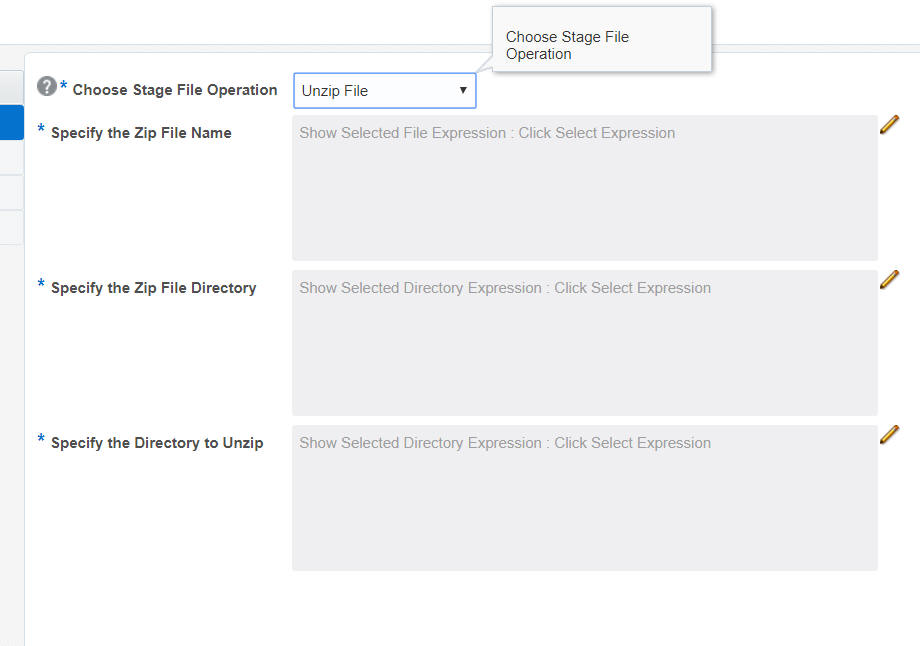

I use the STAGE FILE ACTION for this -

I will then need to configure the following -

I do so as follows -

Note: I have hardcoded the Unzip directory

My Orchestration now looks as follows -

In my scenario, the zip contains only 1 file for processing -

So now we start processing the records in the file.

I will start by listing the contents -

Again, I use the STAGE FILE ACTION -

My Orchestration now looks like this -

Now to the actual file processing...

I add a FOR EACH ACTION to iterate thru the files.

I configure the above as follows -

The Orchestration now -

Now we add yet another STAGE FILE ACTION -

This will be used to Read the file.

I have a test .csv to use here -

The Orchestration now -

I now add yet another STAGE FILE ACTION to write the output file -

Now to the mapping...

I create the following 2 mappings -

All we now need to do is zip up the output file.
We do this again via the STAGE FILE ACTION -

The Orchestration now...

Now we will invoke the Fusion ERP Import Service -

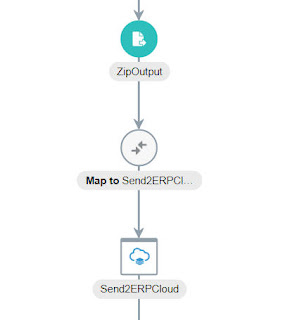

The Orchestration now...

Now to the Mapping...

I now add a NOTIFICATION ACTION to send the confirmation code

I now create the Callback ICS process - this will be called on the successful completion of the ERP import.

Drag and Drop the ERP adapter connection

Add a NOTIFICATION ACTION -

Ensure the certificate for the ERP Cloud instance is imported into the ICS certificate store.

I activate the callback integration.

I copy the Identifier -

I now edit the main Orchestration again, leveraging the callback integration -

I now activate this orchestration


I then test via menu - submit now
